标题的内容已经将主题点明了，通过这一篇的学习我觉得可以考虑带入前端H5和CSS编写网页的思路来理解。使用Subform实现可以简单理解成前端DIV设置了浮动的属性。而使用Table来撑满整个网页的前端设计和这里有异曲同工之感。

Adobe Form打印两个相邻的表格

一、介绍

二、功能实现

之前已经介绍过很多次创建过程了，所以这里就不再介绍如何创建Interface和Adobe Form对象了。直接从设置内容开始。

1.Interface

（1）添加输入参数

（2）定义全局类型

TYPES:
  BEGIN OF TY_MATERIAL,
    MATNR           TYPE MATNR,
    MATKL           TYPE MATKL,
    BISMT           TYPE BISMT,
  END   OF TY_MATERIAL,

  BEGIN OF TY_PLANT,
    MATNR           TYPE MATNR,
    WERKS           TYPE WERKS_D,
    PSTAT           TYPE PSTAT_D,
    DISPR           TYPE DISPR,
  END   OF TY_PLANT,

  BEGIN OF TY_EKPO,
    EBELN           TYPE EBELN,
    EBELP           TYPE EBELP,
    TXZ01           TYPE TXZ01,
    MENGE           TYPE BSTMG,
    MEINS           TYPE BSTME,
  END   OF TY_EKPO.

TYPES:
  TT_MATNR TYPE STANDARD TABLE OF TY_MATERIAL,
  TT_PLANT TYPE STANDARD TABLE OF TY_PLANT,
  TTEKPO   TYPE STANDARD TABLE OF TY_EKPO.

（3）定义全局变量

（4）初始化逻辑

（5）Form 逻辑

FORM GET_MARA USING V_ROW_L.
  SELECT MATNR MATKL BISMT FROM MARA INTO CORRESPONDING FIELDS OF TABLE IT_MARA UP TO V_ROW_L ROWS.
ENDFORM.

FORM GET_MARC USING V_ROW_L.
  SELECT MATNR WERKS PSTAT DISPR FROM MARC INTO CORRESPONDING FIELDS OF TABLE IT_MARC UP TO V_ROW_L ROWS.
ENDFORM.

FORM GET_EKPO USING V_ROW_R.
  SELECT EBELN EBELP TXZ01 MENGE MEINS
    FROM EKPO INTO CORRESPONDING FIELDS OF TABLE IT_EKPO UP TO V_ROW_R ROWS.
ENDFORM.

2.Adobe Form

（1）创建Adobe Form

使用事物代码 SFP 创建Adobe Form 对象。绑定对应的Interface对象。然后将在Interface中创建的全局变量导入到Adobe Form中。

（2）创建文本抬头

在Page1下新建一个Subform，然后添加一个文本对象。

① 插入Subform

② 新建文本对象

将新建好的文本对象放在上面新建的Subform下面。

（3）设置表格分页

选中DetailBody对象，然后设置其Subform的Content对象的属性为Flowed。然后选中 Allow Page Breaks Within Content 。

（4）新建总Subform

在DetailBody下新建一个新的总SubForm对象。然后设置其Subform的Content对象的属性为Flowed，然后选中 Allow Page Breaks Within Content ，最后再修改Flow Direction的值为Westem Text。后面所有的SubForm对象都需要设置这三个属性。

再设置下总Subform的Margins - top为1.2in。这样不会让数据与上面的文本抬头重叠。

到这个地方就完成了全部公共的内容。下面是两种方案的介绍。

（5）测试源代码

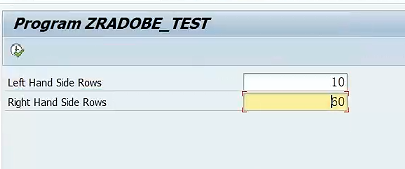

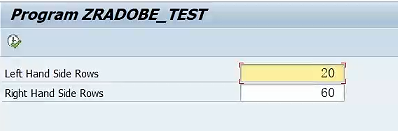

PARAMETERS:
  P_ROWL TYPE I,  " Number of Rows
  P_ROWR TYPE I.  " Number of Rows

CONSTANTS : GV_FORM_NAME TYPE FPNAME VALUE 'YADOBE_FORM_DEMO12'.
**&&~~ Data Objects
DATA: GV_FM_NAME         TYPE RS38L_FNAM,      " FM Name
      GS_FP_DOCPARAMS    TYPE SFPDOCPARAMS,
      GS_FP_OUTPUTPARAMS TYPE SFPOUTPUTPARAMS.

*&---------------------------------------------------------------------*
**&&~~ Form Processing: Call Form - Open
*
CALL FUNCTION 'FP_JOB_OPEN'
  CHANGING
    IE_OUTPUTPARAMS = GS_FP_OUTPUTPARAMS
  EXCEPTIONS
    CANCEL          = 1
    USAGE_ERROR     = 2
    SYSTEM_ERROR    = 3
    INTERNAL_ERROR  = 4
    OTHERS          = 5.
IF SY-SUBRC <> 0.
  " Suitable Error Handling
ENDIF.
*&---------------------------------------------------------------------*
**&&~~ Get the Function module name based on Form Name
*
CALL FUNCTION 'FP_FUNCTION_MODULE_NAME'
  EXPORTING
    I_NAME     = GV_FORM_NAME
  IMPORTING
    E_FUNCNAME = GV_FM_NAME.
IF SY-SUBRC <> 0.
  " Suitable Error Handling
ENDIF.
*&---------------------------------------------------------------------*
**&&~~ Take the FM name by executing the form - by using Pattern-
**&&~~ call that FM and replace the FM Name by gv_fm_name
*
**&&~~ Call the Generated FM
CALL FUNCTION GV_FM_NAME   "'/1BCDWB/SM00000176'
  EXPORTING
    /1BCDWB/DOCPARAMS = GS_FP_DOCPARAMS
    V_ROW_R           = P_ROWR
    V_ROW_L           = P_ROWL
  EXCEPTIONS
    USAGE_ERROR       = 1
    SYSTEM_ERROR      = 2
    INTERNAL_ERROR    = 3
    OTHERS            = 4.
IF SY-SUBRC <> 0.

* Implement suitable error handling here
ENDIF.
*&---------------------------------------------------------------------*
**&&~~ Form Processing: Call Form - Open
*
CALL FUNCTION 'FP_JOB_CLOSE'
* IMPORTING
*   E_RESULT             =
  EXCEPTIONS
    USAGE_ERROR    = 1
    SYSTEM_ERROR   = 2
    INTERNAL_ERROR = 3
    OTHERS         = 4.
IF SY-SUBRC <> 0.
* Implement suitable error handling here
ENDIF.
